Gedetailleerde informatie

Stroom:	100W	Frequentie:	300-2700 MHz
Spanning:	22V-32V	Huidig:	10A
gewicht:	557G	Maat:	1756523mm
Sollicitatie:	RF-project	Materiaal:	Aluminium
Connector:	N
Markeren:	22V 32V GaN RF power amplifier , 100W anti-drone amplifier module , N connector RF power amplifier

Productomschrijving

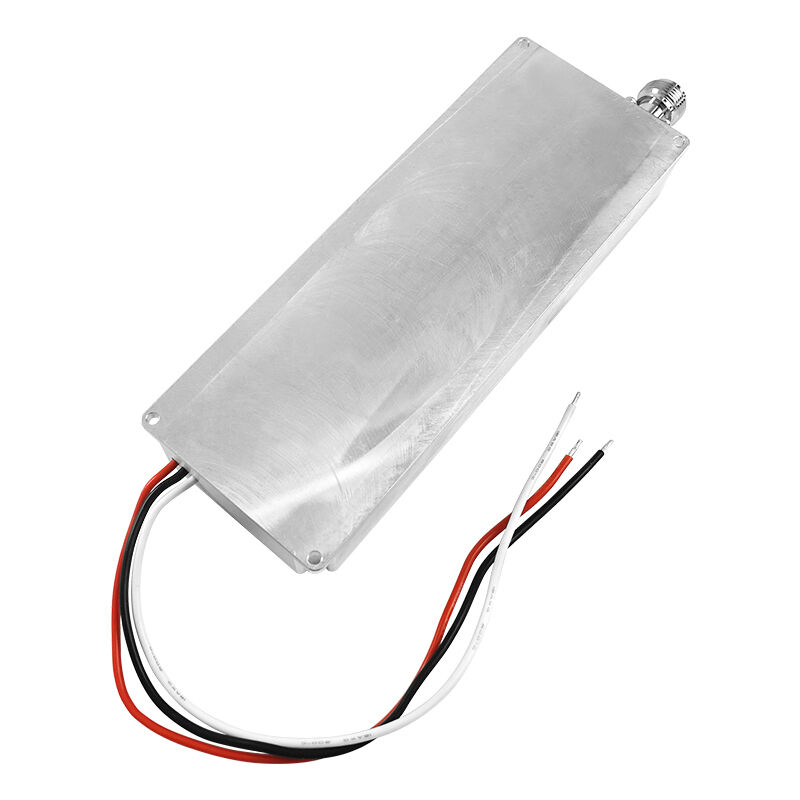

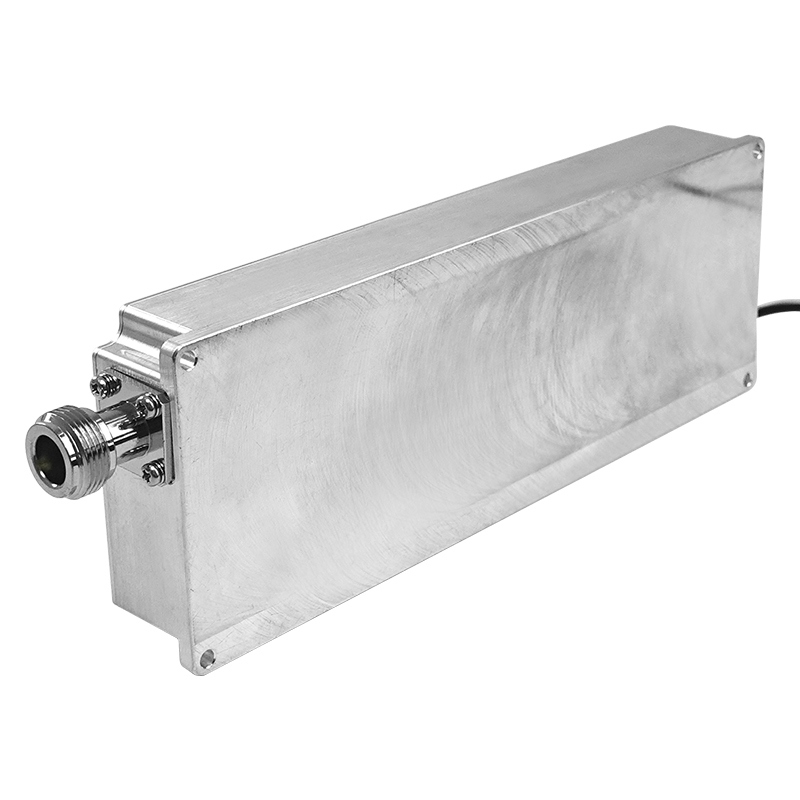

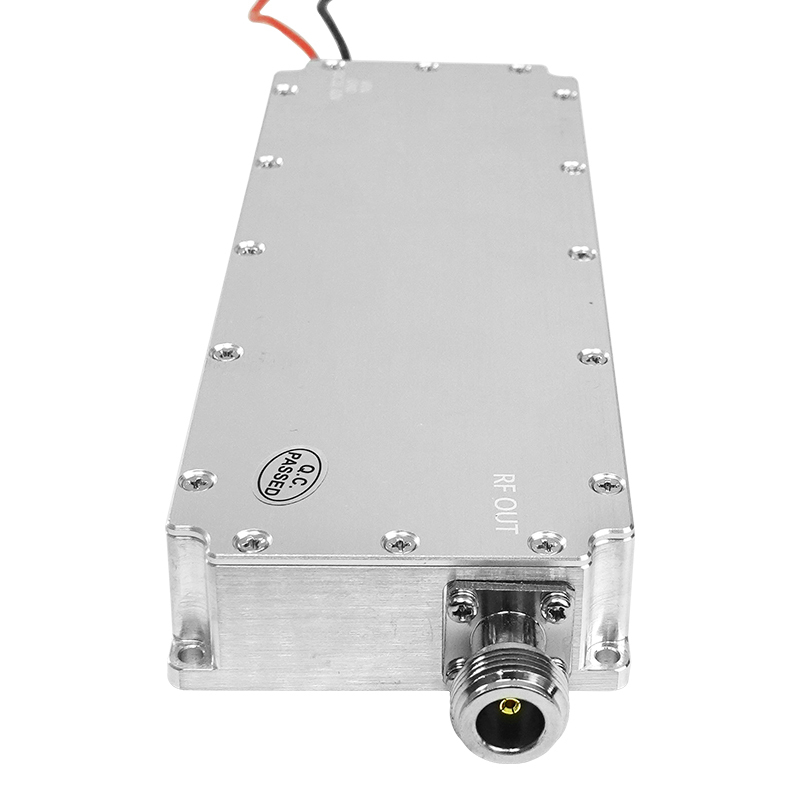

22V 32V Regulated 100W GaN RF Power Amplifier Module

This high-frequency GaN RF jamming module delivers 100W output power with 22V-32V regulated voltage and features an N-type connector. Designed for anti-drone countermeasure applications, it effectively disrupts communication between drones and their controllers, forcing them to land or return to base.

Product Overview

Manufactured by Texin Company using gallium nitride technology and housed in a waterproof, highly conductive aluminum casing, this amplifier offers high efficiency and excellent sensitivity resistance. Every unit undergoes 100% quality inspection to ensure reliability and long service life.

Technical Specifications

Parameter	Value	Unit
Frequency	5925-6425	MHz
Test Voltage	22-32	V
Current	10	A
Output Power	100	W
Gain	50	dB
Output Stability	1	dB
Connector	N/Female
Output Connector VSWR	≤1.30 (No power and VNA test)
Power Supply	Red+Black+Enable wire
Enable Control	High ON Low Off
Dimensions	175×65×23	mm
Mount Hole	175×65	mm
Weight	557	g
Operating Temperature	-40 to +65	℃
Housing Material	Aluminum
Vibration Resistance	Car load OK

Key Features

Compact structure for easy portability
22V-32V wide voltage input range
100% reliable quality assurance
N-type connector with 100W high power output
Effective against various types of drones
Ideal for airports, prisons, military zones, and factory security

Important Usage Notes

Use only with matched voltage specifications
Connect antenna before powering on the device
Cooling system required for prolonged operation
Optimal performance in areas with unobstructed views

Frequently Asked Questions

What is the minimum order quantity?

We support orders starting from one piece, but do not offer free samples.

What is the price of the 100W anti-drone jamming module?

Prices vary depending on the frequency band. Please contact us for specific pricing.

What payment methods do you accept?

We accept T/T, Alibaba, PayPal, USDT, Alipay, WeChat, and other payment methods.

What is the delivery time?

Orders are typically shipped within 5-7 days after placement.

Beoordelingen en recensie

Algemene Beoordeling

5.0

Gebaseerd op 50 beoordelingen voor deze leverancier

Beoordelingsmomentopname

Het volgende is de verdeling van alle beoordelingen

5 sterren

100%

4 sterren

3 sterren

2 sterren

1 sterren

Alle recensies

Kyle

Croatia (local name: Hrvatska) Feb 10.2026

Het is nuttig. (20)

The product is excellent and deserves 5 stars.

Miles

Denmark Dec 30.2025

Het is nuttig. (6)

TX 20W amplifier module is great ,recommand to buy .

Jamie

Albania Dec 25.2025

Het is nuttig. (5)

it's perfect, has all the necessary functions, is very convenient to use, and offers good value for money.

label:

Plaats van herkomst:	China
Merknaam:	TeXin
Certificering:	CE ISO
Modelnummer:	TX-PD50W

Min. bestelaantal:	1
Prijs:	Onderhandelbaar
Verpakking Details:	Duurzaam geval of doos
Levertijd:	5-8 dagen
Betalingscondities:	L/C, D/A, D/P, T/T, Western Union
Levering vermogen:	100000 PER MAAN
