Thuis > Producten> Drone-jammermodule> Wide coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV signal jammer module for air safety

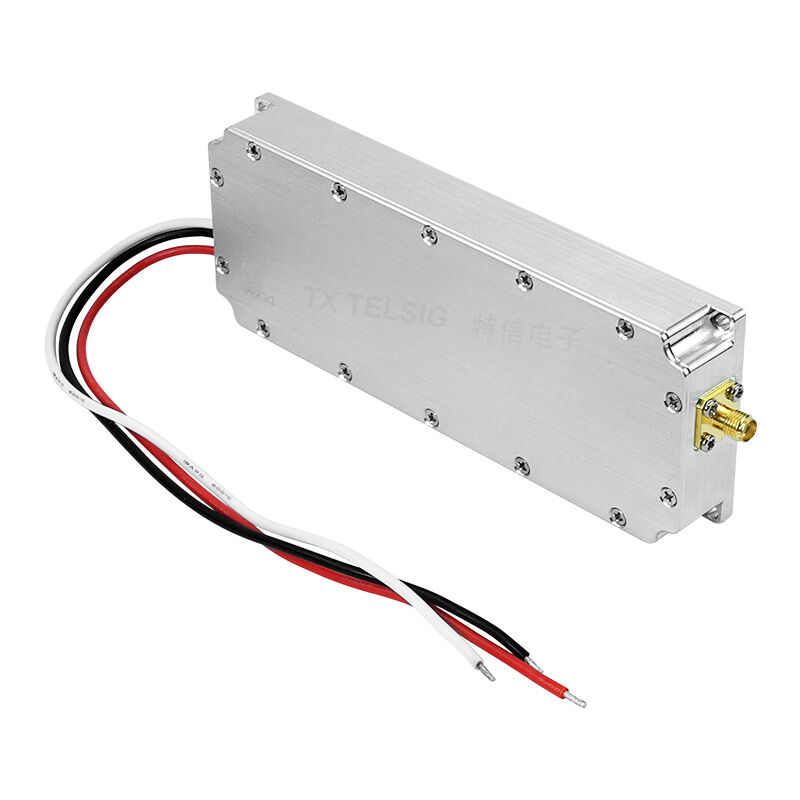

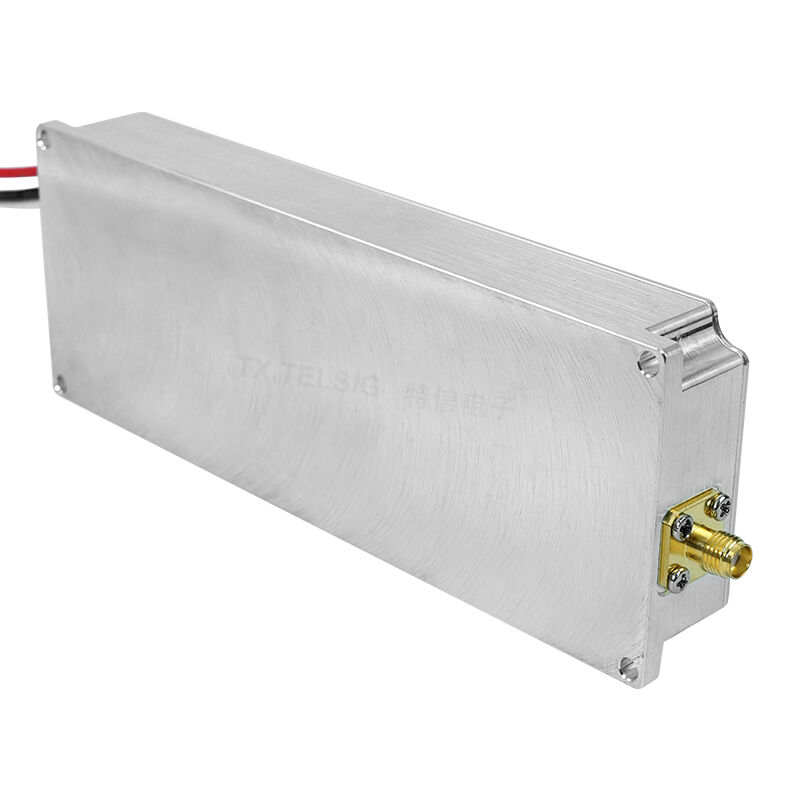

Wide coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV signal jammer module for air safety

Wide coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV signal jammer module for air safety
Wide coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV signal jammer module for air safety Wide coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV signal jammer module for air safety Wide coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV signal jammer module for air safety
Basisinformatie
Plaats van herkomst: SHENZHEN CHINA
Merknaam: TeXin
Certificering: SGS,ISO9001,ROHS
Modelnummer: TX-P050VGHS
Min. bestelaantal: 1
Prijs: Onderhandelbaar
Verpakking Details: Duurzaam geval of doos
Levertijd: 5-8 dagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union
Levering vermogen: 10000 stuks per maand
Beste prijs Contact nu
Gedetailleerde informatie
Merk: Texin Stroom: 50W
Frequentie: 400-3800 MHz Spanning: 24-28V
Verdienen: 47DBM Type: Jammer-module
Sollicitatie: Bescherming van belangrijke gebieden Maat: 130*53*19
Gewicht: 263g
Markeren:

800MHz UAV signal jammer module

,

2.4GHz drone jammer for air safety

,

24V wide coverage drone jammer

Productomschrijving

Wide Coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV Signal Jammer Module for Air Safety
Texin 50W 400-3800MHz drone jamming module, customizable to any frequency band within 400-3800MHz. Each module supports a bandwidth of 200MHz-300MHz. A single module can be matched with two voltages of 24-28V. It can suppress the frequency bands of various mainstream drones on the market, including 800MHz, 900MHz, 1.2GHz, and 2.4GHz. It can be used for low-altitude safety protection.
Key Features
  • Multiple modules interfere with multiple frequency bands to achieve full-band coverage
  • In unobstructed environments, it can be jammed from a distance, thus mitigating the threat posed by drones in advance
  • Uses gallium nitride material, resulting in low power consumption and long lifespan
  • Can be matched with a variety of voltages and is suitable for various operating environments
  • High-performance aluminum casing, waterproof, high temperature resistant, and highly conductive
  • Compact structure, lightweight, easy to install and carry
  • Smooth bandwidth, stable output, and good interference resistance
Technical Specifications
No. Item Data Unit Notes
1 Frequency 400-3800 MHz
2 Work Temperature -20~+70 ℃
3 Max Output Power 50 W
4 Work Voltage DC24-28 V
5 Max Gain 47 dB
6 Flatness ±3 dB
7 Max Current 7 A
8 Output VSWR ≤1.5
9 Output Connector SMA/F 50Ω Customized
10 Power Amplifier Efficiency 45 when Max Output
11 Switch Control high low level current V 0V off /0.6 on
12 Standing Wave Protection OK
13 Temperature Protection 75° ℃
14 Size 53*139*19 mm
15 Weight 0.263 Kg
Applications
  • VIP privacy protection: Preventing illegal drones from tracking important clients
  • Airports: Preventing drone interference with flight paths
  • Agriculture: Preventing drone-based crop poisoning
  • Schools: Educational materials for student learning
  • Downtown areas: Combating terrorist drone attacks
  • Government security departments: Combating illegal and criminal activities
After Service

1. Purchased Texin products come with a 1-year warranty.

2. Includes technical specifications and user manual.

3. We provide technology support after buying our products.

Wide coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV signal jammer module for air safety 0 Wide coverage 800MHz 900MHz 1.2GHz 2.4GHz 24V 28V UAV signal jammer module for air safety 1
FAQ
How much does this drone signal jammer module cost?
The newest price please contact us, we use tiered pricing; the more you buy, the better the value for money.
What is the minimum purchase quantity?
One order is supported; free samples are not available.
What is the delivery time?
Delivery typically takes 5-7 working days after payment. For bulk orders, delivery time requires negotiation.
