Gedetailleerde informatie

Type:	Poreerbare module	Frequentiebereik:	Aangepast
Gewicht:	368g	Bandbreedte:	200 MHz
Stroom:	50W	Huidig:	4A
Spanning:	32V	Maximaal vermogen:	50 W
Nominale Impedantie:	50Ω	applicaition:	Draadloos signaal, beveiliging
Markeren:	Pocket-sized VCO interference module , Split-type WiFi jammer module , Customizable 2.4GHz 5.8GHz signal jammer

Productomschrijving

Pocket-sized VCO Split-Type Interference Module

Ultra-compact split-type VCO interference module covering 2.4GHz and 5.8GHz WiFi bands. Built with independent VCO isolation design for stable output, low self-interference, and customizable linear/saturated power parameters.

Product Overview

This advanced interference module features a split-type independent VCO oscillator design that ensures stable output with minimal self-interference. Unlike standard fixed modules, this model offers complete customization including output power, frequency range, working mode, interface definition, and heat dissipation configuration. It serves as a high-cost-effective core solution for portable signal shielding devices, anti-drone systems, privacy protection equipment, and RF experimental development.

Technical Specifications

Key Features

Working Frequency: Customizable (800MHz, 900MHz, etc.)
Core Structure: Split-type independent VCO oscillator
Working State: Linear region stable output / Saturation peak output
Output: Stable operation at 50W (47dBm)
Output Mode: Fixed frequency
Features: Low noise, high isolation, no frequency drift

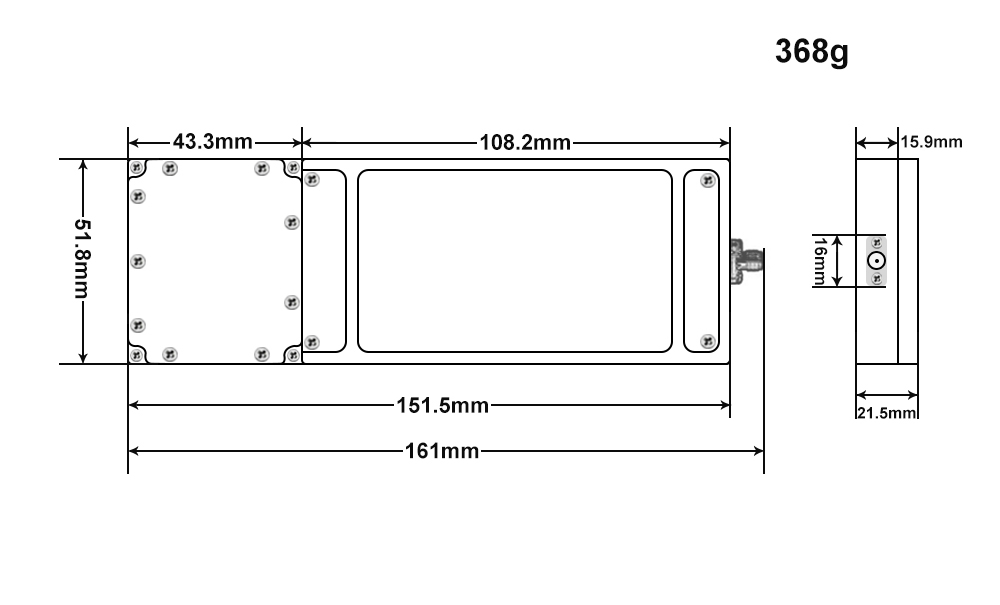

Size: Pocket mini compact design
Custom Service: Power, frequency, interface, program, shell customizable

Performance Parameters

Parameter	Test Condition	Minimum Value	Representative Value	Maximum Value	Unit
Working Frequency Range		830		930	MHz
Saturation Output Power		40	45		W
Full-power Supply Current			3.8	4.0	A
Enable Level Logic	High = On, Low = Off
Enable Control Voltage			28		V
Output Impedance			50		Ohm

Environmental Specifications

Parameter	Minimum Value	Maximum Value	Unit
Module Operating Temperature	-40	+85	℃
Storage Temperature	-40	+105	℃
DC Power Supply Voltage		32	V

Main Applications

Portable WiFi signal shielding equipment
Anti-drone interference suppression systems
Privacy & confidential environment signal isolation
RF circuit development and experimental testing
Custom wireless countermeasure equipment integration

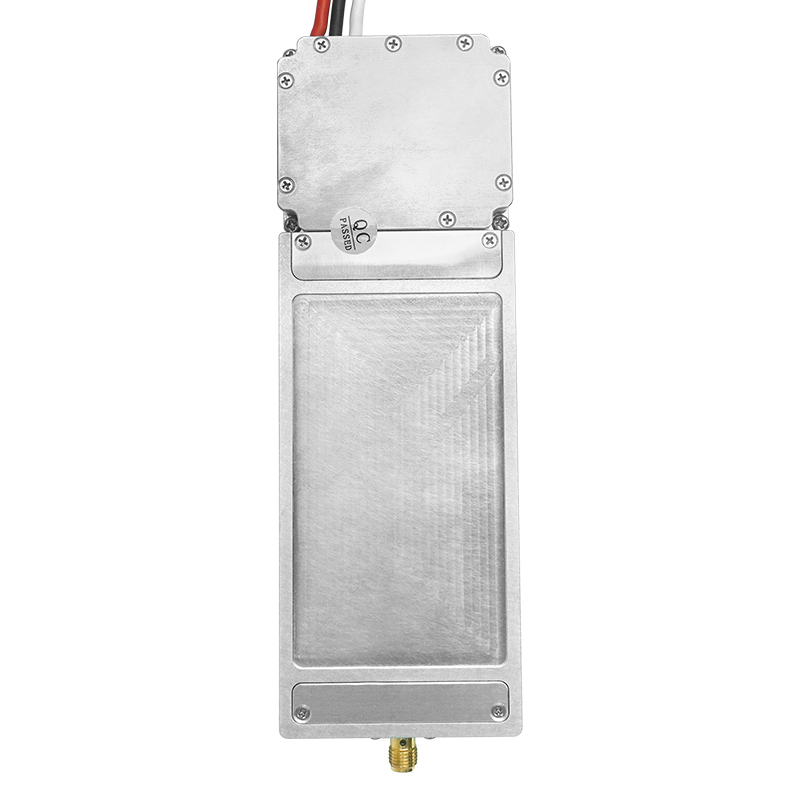

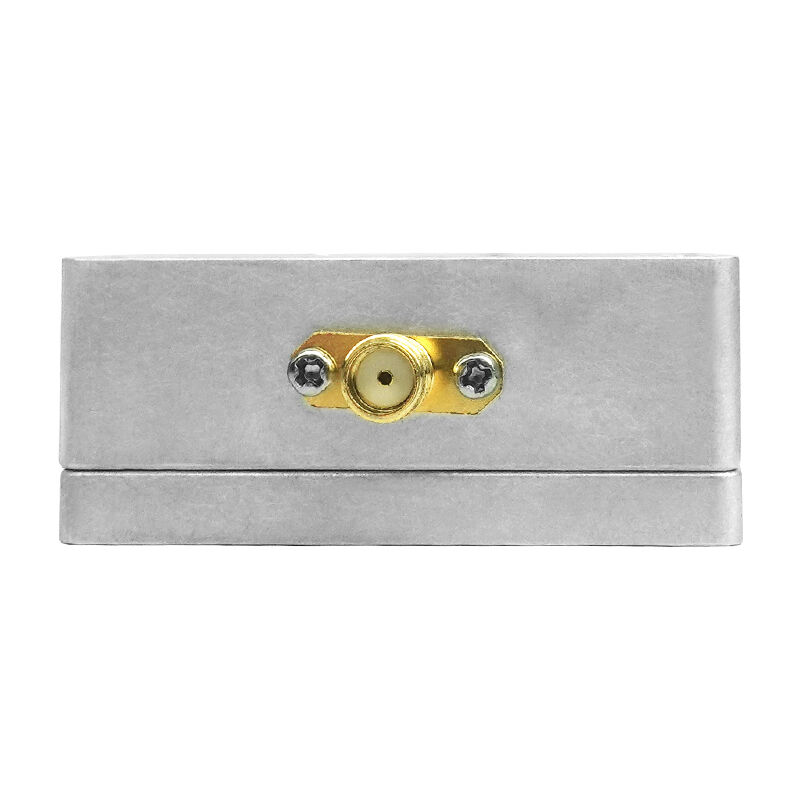

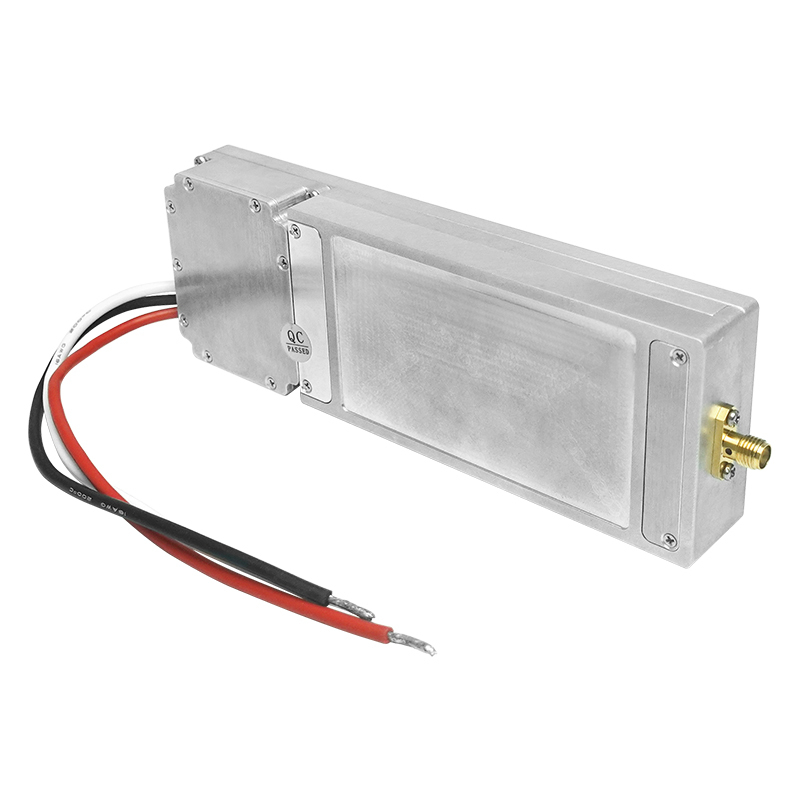

Product Images

Beoordelingen en recensie

Algemene Beoordeling

5.0

Gebaseerd op 50 beoordelingen voor deze leverancier

Beoordelingsmomentopname

Het volgende is de verdeling van alle beoordelingen

5 sterren

100%

4 sterren

3 sterren

2 sterren

1 sterren

Alle recensies

Arthur

Estonia Feb 10.2026

Het is nuttig. (10)

Good quality ！Best service !

Kyle

Croatia (local name: Hrvatska) Feb 10.2026

Het is nuttig. (20)

The product is excellent and deserves 5 stars.

Jones

Belarus Oct 22.2025

Het is nuttig. (10)

This is fantastic, the best product I've ever bought.

label:

Plaats van herkomst:	China
Merknaam:	TX TELSIG
Certificering:	SGS,ISO9001
Modelnummer:	TXH050

Min. bestelaantal:	1
Prijs:	Onderhandelbaar
Verpakking Details:	Duurzaam geval of doos
Levertijd:	In 2 werkdagen
Betalingscondities:	T/T, Paypal, enzovoort.
Levering vermogen:	100.000 stcs/maand

Pocket-sized VCO split-type interference module, WiFi 2.4GHz and 5.8GHz, customizable.

Pocket-sized VCO interference module

Split-type WiFi jammer module

Customizable 2.4GHz 5.8GHz signal jammer
