Thuis > Producten> rf-machtsversterker> Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety

Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety

Basisinformatie

Plaats van herkomst:	China
Merknaam:	TeXin
Certificering:	CE ISO
Modelnummer:	TX-CD20W

Min. bestelaantal:	1
Prijs:	Onderhandelbaar
Verpakking Details:	Duurzaam geval of doos
Levertijd:	5-8 dagen
Betalingscondities:	L/C, D/A, D/P, T/T, Western Union
Levering vermogen:	100000 PER MAAN

Beste prijs Contact nu

Gedetailleerde informatie

Stroom:	20W	Frequentie:	10-18GHz
Spanning:	28V	Huidig:	Vernissen
gewicht:	164G	Maat:	806016mm
Sollicitatie:	anti -dronesysteem	Materiaal:	Aluminium
Connector:	SMA
Markeren:	28V broadband PA power amplifier , 10-18GHz RF power amplifier module , 0dB input signal safety amplifier

Productomschrijving

Texin 28V 0dB Input 10-18GHz Broadband Power Amplifier Module

Designed specifically for signal security applications, this broadband power amplifier module offers comprehensive 10-18GHz coverage with bidirectional connector amplification, low 0dB input requirement, and high stability 20W output. Compatible with standard 28V power supply, it eliminates the need for additional preamplification for easy and efficient deployment.

Product Overview

The 10-18GHz 20W solid-state power amplifier from Texin Electronics incorporates advanced protection features including temperature and overcurrent protection. Its compact design ensures convenient portability and installation, while delivering high reliability, efficiency, and smooth output performance.

Technical Specifications

Parameter	Value	Unit
Frequency Range	10-18	GHz
Operating Voltage	28	V
Current Consumption	4.1-4.2	A
Output Power	20	W
Gain	43	dB
Input Stability	0	dB
Attenuation	31	dB

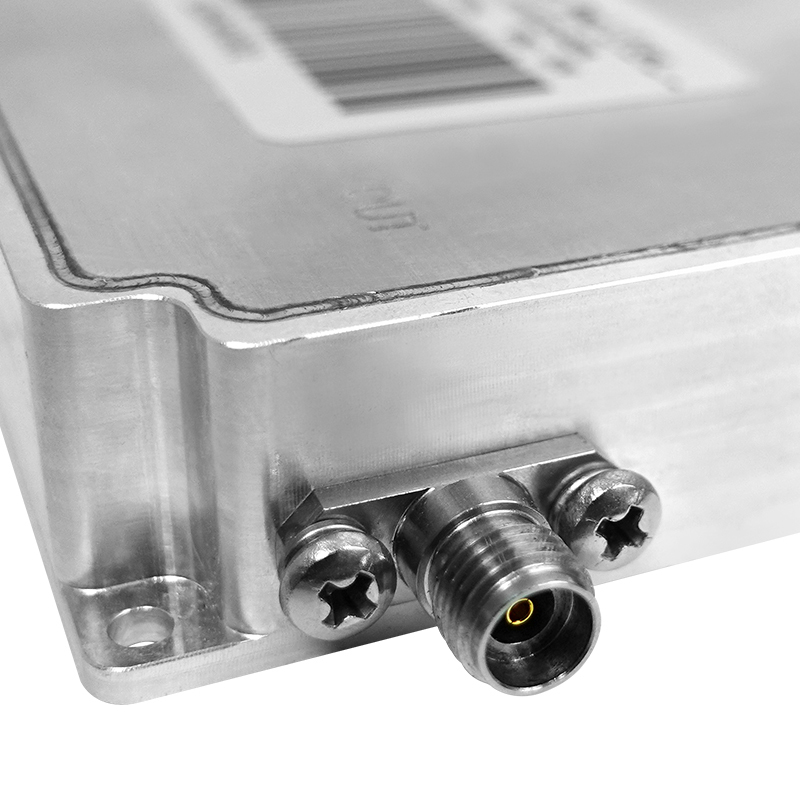

Connector Type	SMA/Female
Power Supply Wiring	Red+Black+Enable wire

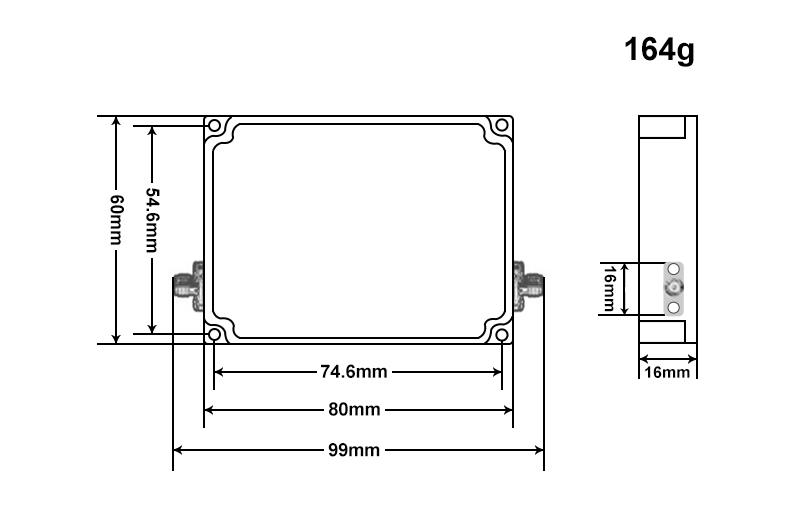

Dimensions	80×60×16	mm
Mounting Hole Pattern	80×60	mm
Operating Temperature	-40 to +65	°C
Enclosure Material	Aluminum
Vibration Resistance	Vehicle Mount Compatible

Key Features

Ultra-high frequency coverage across 10-18GHz spectrum
Low power consumption with high efficiency operation
Compact and lightweight design for easy portability
Wide coverage suitable for vehicle-mounted, fixed, and portable jamming systems

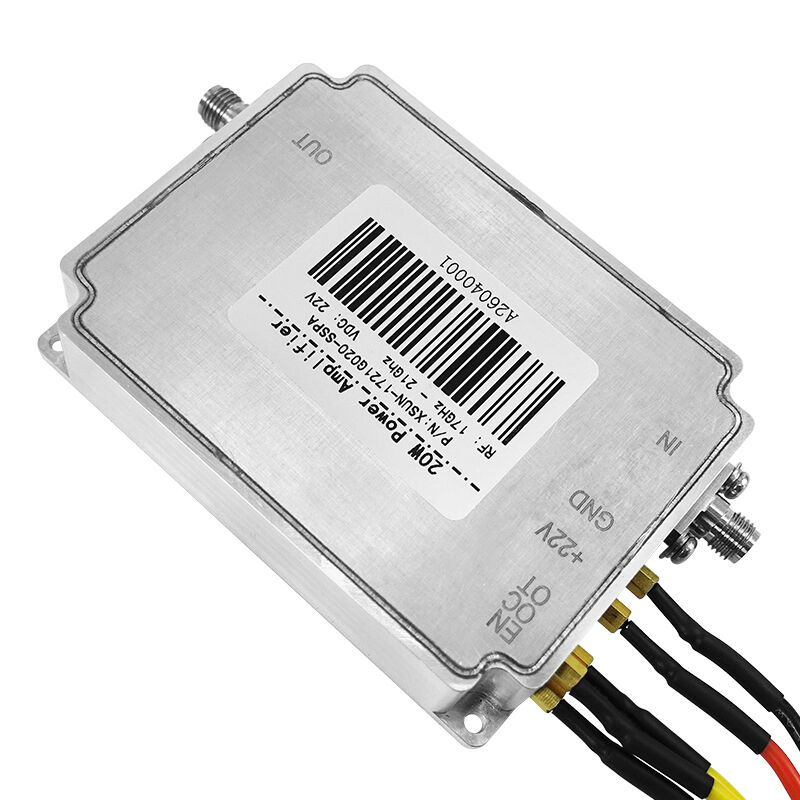

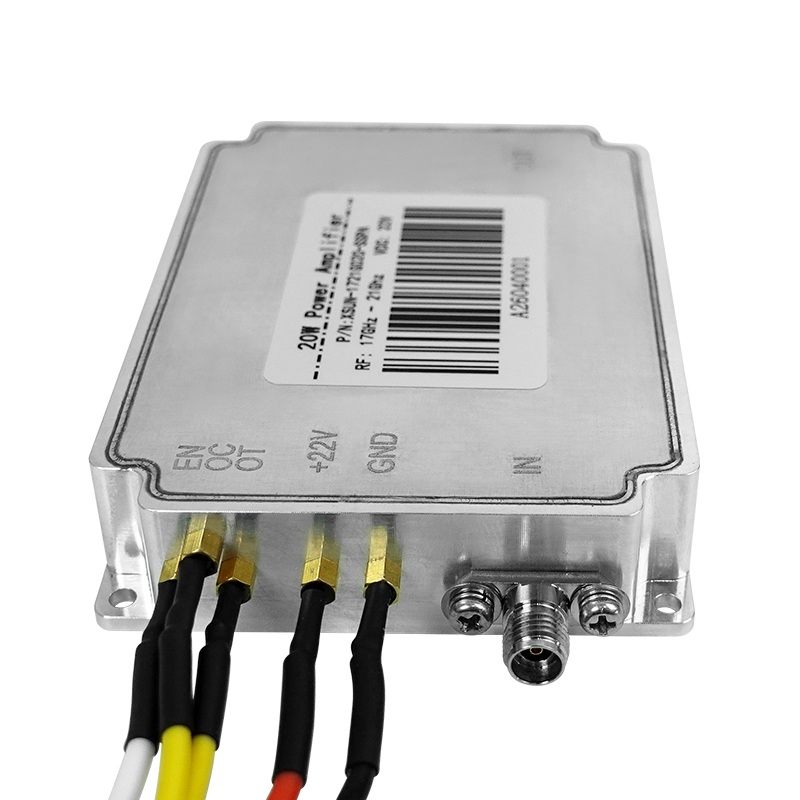

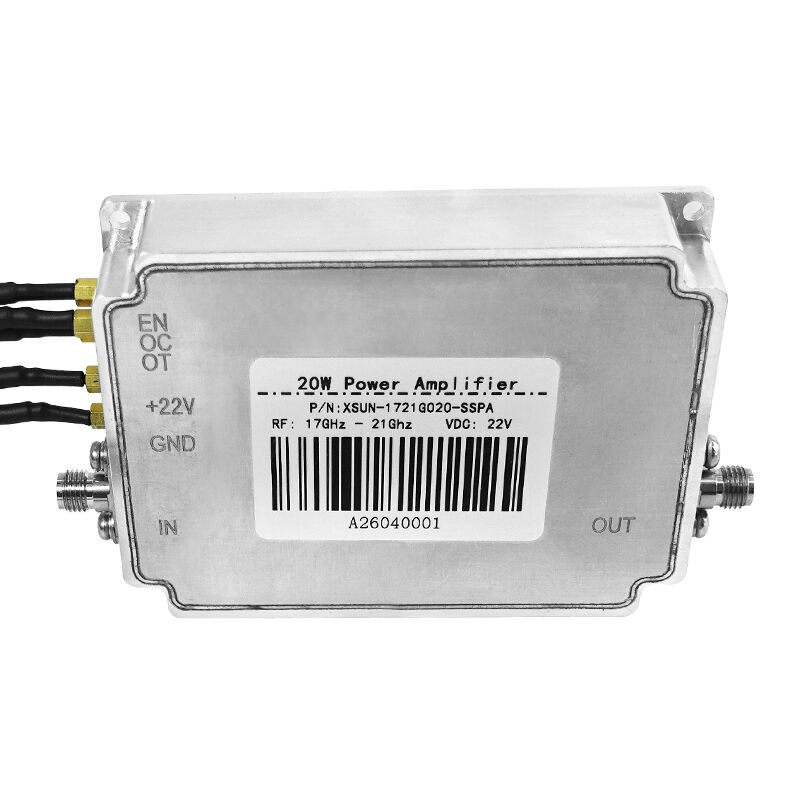

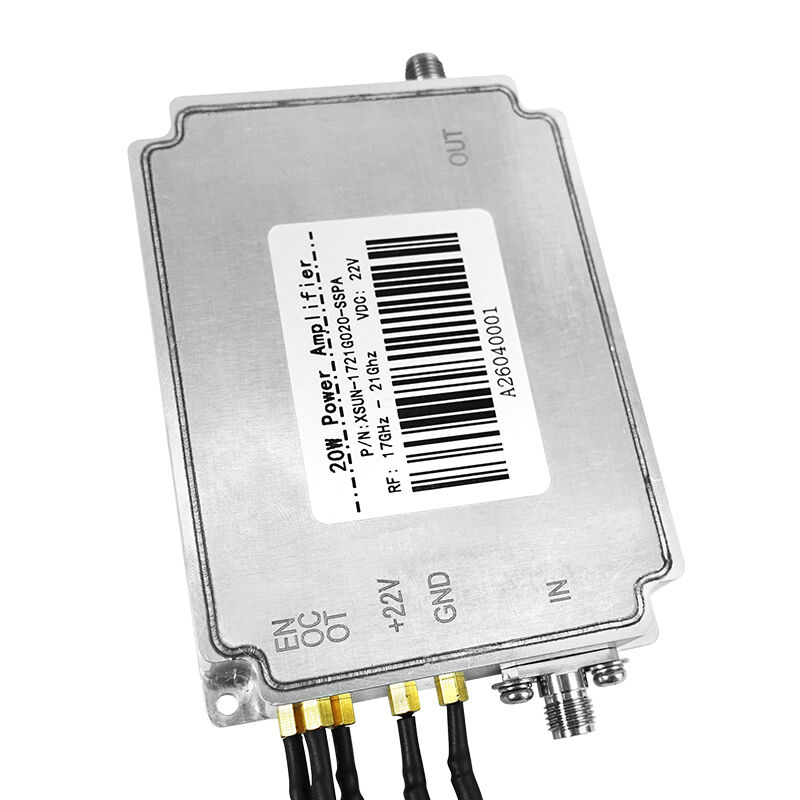

Product Images

Applications

Satellite Communication: Ground station signal amplification and satellite terminal signal enhancement to increase communication distance and stability
Radar Detection: Military and civilian radar systems for airborne, shipborne, and ground radar applications
National Defense & Aerospace: RF signal amplification for defense communication and aerospace equipment meeting military-grade standards
Microwave Testing: Core amplification component for microwave testing equipment and RF testing applications

Frequently Asked Questions

What is the minimum order quantity?

We support orders starting from one piece, but do not offer free samples.

What is the price of the 100W anti-drone jamming module?

Prices vary depending on the frequency band. Please contact us for specific pricing.

What payment methods do you accept?

We accept T/T, Alibaba, PayPal, USDT, Alipay, WeChat, and other payment methods.

What is the delivery time?

Orders are typically shipped within 5-7 days after placement.
