Thuis > Producten> rf-machtsversterker> Customized 20W 17GHz 21GHz RF PA power amplifier module for radar and satellite industries.

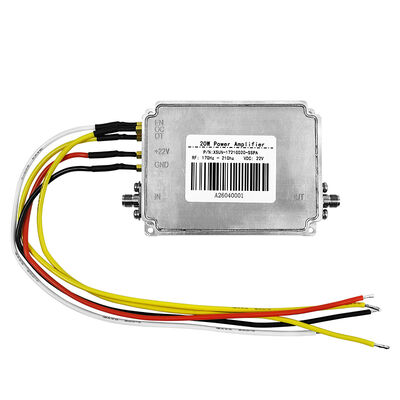

Customized 20W 17GHz 21GHz RF PA power amplifier module for radar and satellite industries.

Basisinformatie

Plaats van herkomst:	China
Merknaam:	TeXin
Certificering:	CE ISO
Modelnummer:	TX-HZ70W

Min. bestelaantal:	1
Prijs:	Onderhandelbaar
Verpakking Details:	Duurzaam geval of doos
Levertijd:	5-8 dagen
Betalingscondities:	L/C, D/A, D/P, T/T, Western Union
Levering vermogen:	100000 PER MAAN

Beste prijs Contact nu

Gedetailleerde informatie

Stroom:	70W	Frequentie:	Aangepast
Spanning:	28V	Huidig:	6A
gewicht:	278 g	Maat:	1325320mm
Sollicitatie:	anti -dronesysteem	Materiaal:	Aluminium
Connector:	SMA
Markeren:	20W RF power amplifier module , 17GHz radar power amplifier , 21GHz satellite RF amplifier

Productomschrijving

Customized 20W 17GHz-21GHz RF Power Amplifier Module

This 20W ultra-wideband power amplifier (17GHz-21GHz) is designed for high-performance applications in microwave communication, radar detection, and satellite communication. As part of the Ku/Ka edge band power amplifier category, it delivers exceptional bandwidth, power, efficiency, and stability.

Product Overview

Developed and manufactured by Shenzhen Texin Electronics, this 20W 17GHz to 21GHz broadband power amplifier features a compact design with 100% DC and RF full-process testing. It complies with lead-free and RoHS standards and operates in temperatures from -20℃ to +60℃. With anti-interference, shock resistance, and long lifespan characteristics, it ensures continuous stable operation and reduces equipment failure rates.

Technical Specifications

Parameter	Value	Unit
Frequency	17000-21000	MHz
Test Voltage	22	V
Current	3.7	A
Output Power	20	W
Gain	43	dB
Output Stability	1	dB
Connector	SMA/Female
Output Connector VSWR	≤1.30 (No power and VNA test)
Power Supply	Red+Black+Enable wire
Enable Control	High ON Low Off
Dimensions	806016	mm
Mount Hole	80*60	mm
Weight	164	g
Operating Temperature	-40 to +65	℃
Housing Material	Aluminum
Vibration Resistance	Car load OK

Key Features

Precise Broadband Coverage: Covers the entire 17GHz-21GHz frequency band (compatible with 17.3-21.2GHz Satcom band) without requiring additional adjustments or segmented debugging
Integrated Design: Equipped with integrated power detector for system diagnosis and maintenance, with all input/output ports fully matched at 50Ω
Advanced Ultra-Wideband Technology: Maintains stable output across ultra-wideband frequencies, meeting strict high-end application requirements
Environmental Adaptability: High-quality aluminum alloy housing with sandblasting oxidation treatment provides excellent heat dissipation, corrosion resistance, and impact resistance

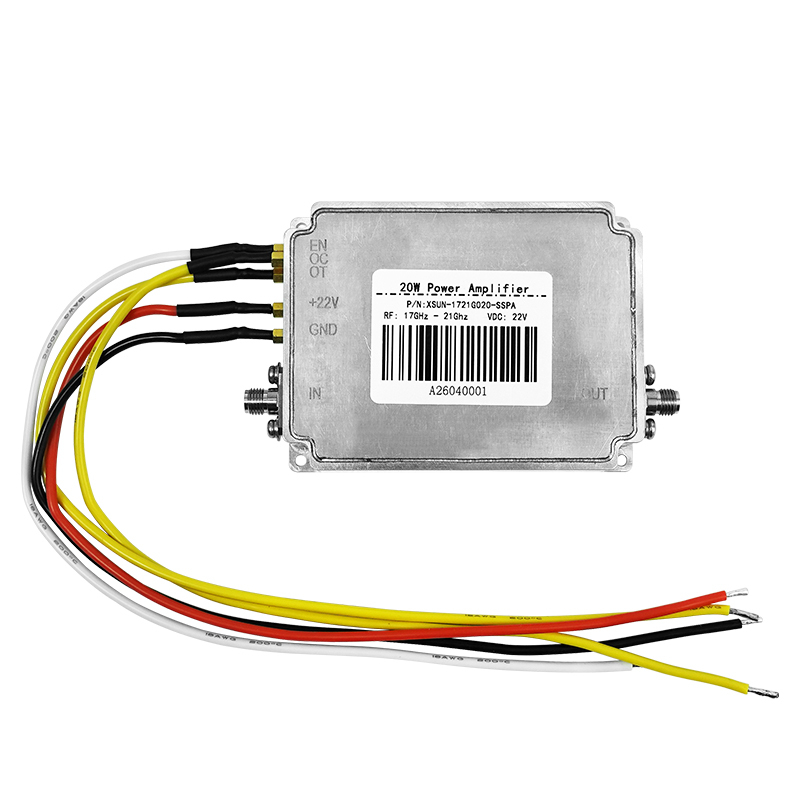

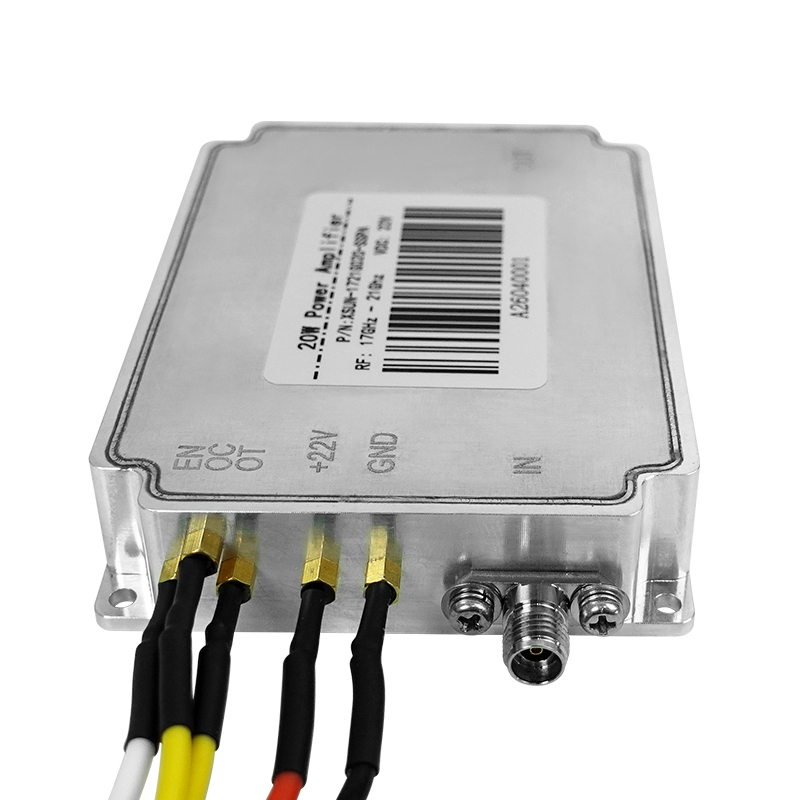

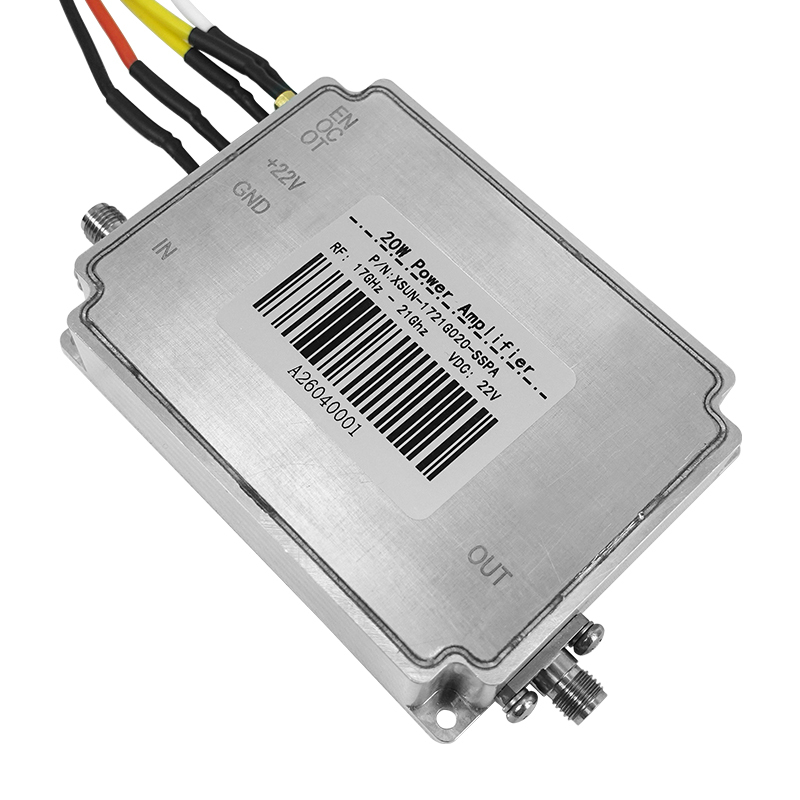

Product Images

Applications

Satellite Communication: Ground station signal amplification and satellite terminal signal enhancement to increase communication distance and stability
Radar Detection: Military and civilian radar systems for airborne, shipborne, and ground radar applications
National Defense & Aerospace: RF signal amplification for defense communication and aerospace equipment meeting military-grade standards
Microwave Testing: Core amplification component for microwave testing equipment and RF testing applications

Frequently Asked Questions

What is the minimum order quantity?
We support orders starting from one piece, but do not offer free samples.
What is the price of the 100W anti-drone jamming module?
Prices vary depending on the frequency band. Please contact us for specific pricing.
What payment methods do you accept?
We accept T/T, Alibaba, PayPal, USDT, Alipay, WeChat, and other payment methods.
What is the delivery time?
Orders are typically shipped within 5-7 days after placement.
