Outdoors 2g 3g 4g band sector antenna for communication antenna

Basisinformatie

Plaats van herkomst:	Shenzhen China
Merknaam:	TeXin
Certificering:	CE ISO

Min. bestelaantal:	1
Prijs:	Onderhandelbaar
Verpakking Details:	duurzame zaak
Levertijd:	5-8 dagen
Betalingscondities:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen:	1000/maand

Beste prijs Contact nu

Gedetailleerde informatie

Type:	Sectorantenne	Maximaal invoervermogen:	100W
Antennefrequentie:	100-6000 MHz (aangepast)	Antenne -winst:	12DBI
Polarisatie:	Verticaal	Connector:	N
Maat:	90028080mm	Gewicht:	4,5 kg
Materiaal:	ABS	Bliksembeveiliging:	Gelijkstroom-Grond
Markeren:	outdoor 4g sector antenna , high gain communication antenna , 2g 3g band sector antenna

Productomschrijving

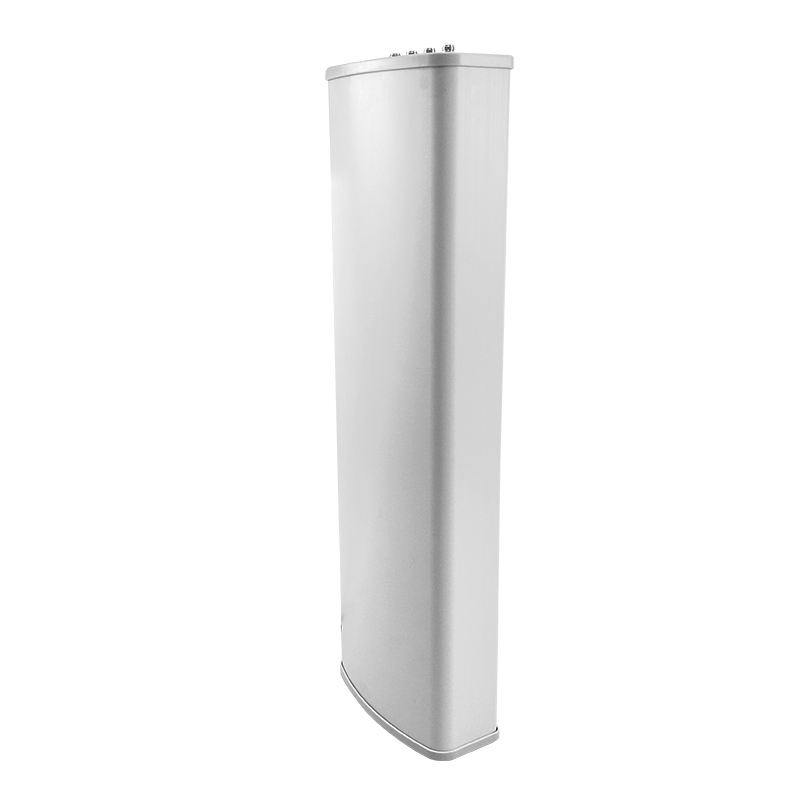

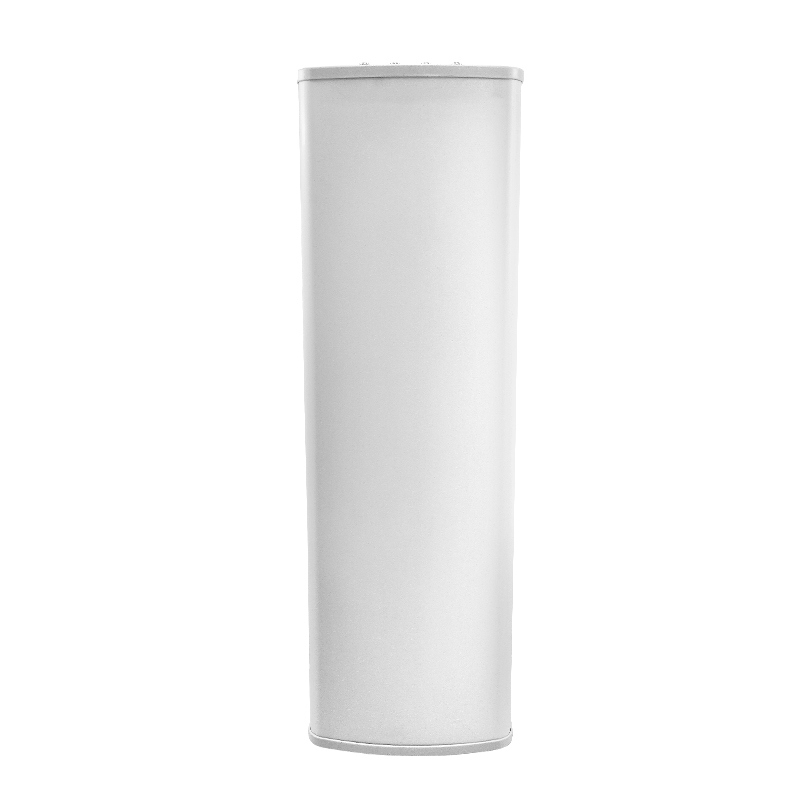

Outdoors 2g 3g 4g band sector antenna for communication antenna

This outdoor 2G, 3G, and 4G frequency sector antenna is a directional plate antenna developed and manufactured by Texin specifically for mobile communication base stations, drone countermeasures, and satellite communications. Its 12dBi gain significantly improves signal strength, and its internal copper and PTFE materials ensure efficient reception of RF signals.

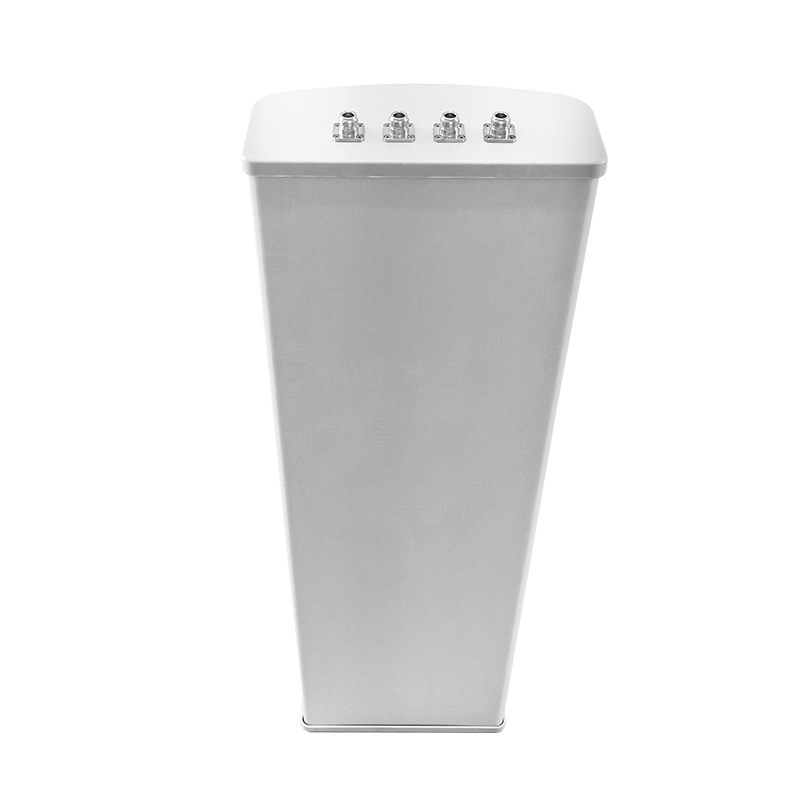

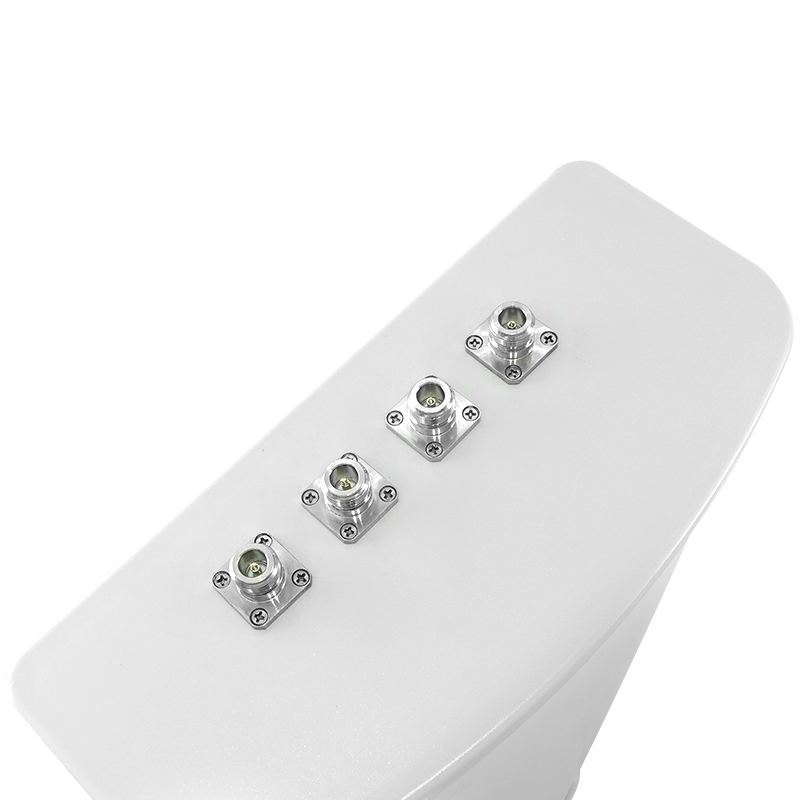

The product has 4 RF interfaces, users can customize 2G, 3G, WIFI, 5.2ghz 5.8ghz according to their needs.The outer cover is waterproof and windproof and can adapt to various complex environments and outdoor installation and use.

Outdoors 2g 3g 4g band sector antenna for communication antenna 0

Product specification

Brand	Texin
Product Type	Sector directional antenna
Gain(dBi)	12±1dBi
Frequency Range	( Customized )
Output Power	50W/100W/300W
Max Gain	13dbi (customized)
Inpur connector type	2*N-K

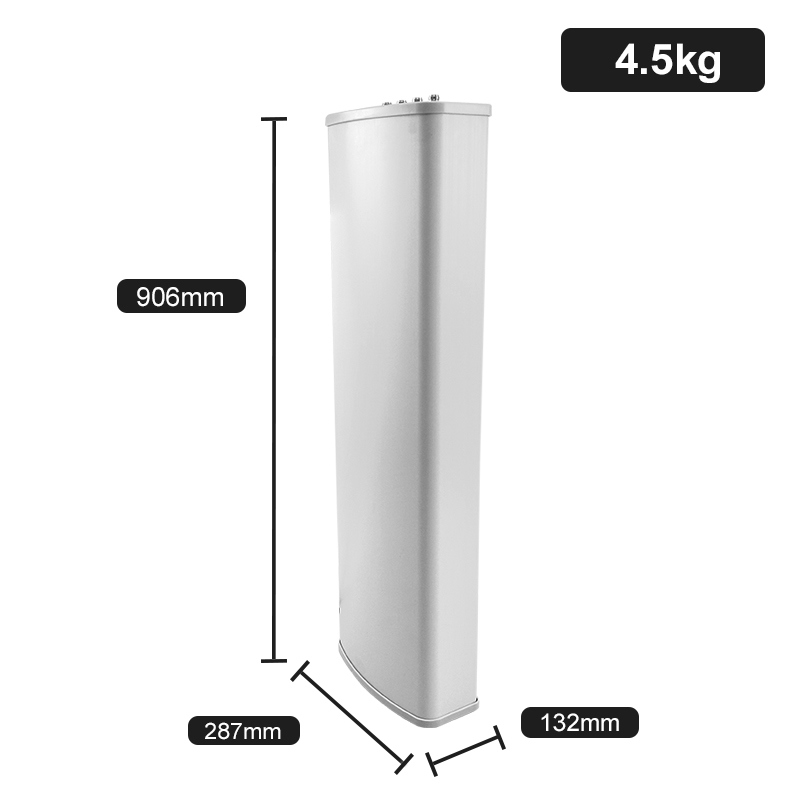

Product Size	90028080mm
Product Weight	4.5Kg
Polarization	Vertical
Horizontal Beamwidth	65±8º
Vertical Beamwidth	35±5º

Product Feature

* 4 band 2G 3G 4G 5G

*Strong anti interference ability

*Waterproof high high performance transmission

*Vertical polarization

Application
