Plaats van herkomst: | CHINA |
---|---|
Merknaam: | TeXin |
Certificering: | SGS,ISO9001 |
Modelnummer: | TX-CD100W |
Min. bestelaantal: | 1 |
Prijs: | Onderhandelbaar |
Verpakking Details: | Duurzaam geval of doos |
Levertijd: | 3-5 dagen |
Betalingscondities: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Levering vermogen: | 50,00PCS/Month |
Frequentie: | 2000-7200 MHz (aangepast) | Testspanning: | 28-32V |
---|---|---|---|
Huidig: | 9A | Uitvoer: | 100W |
Verdienen: | dBm 53 | Outputstabiliteit: | 1DB |
Aansluiting: | N/ Vrouw | Grootte van de schelp: | 220*110*26 mm |
Gewicht: | 1316g | Werktemperatuur: | -40~+65 |
Uit shell -materiaal: | Aluminium | Sollicitatie: | Drone-stoorzender |
Markeren: | RF amplifier module 100W,drone jammer power amplifier,Ultra band amplifier 2000-7200MHz |

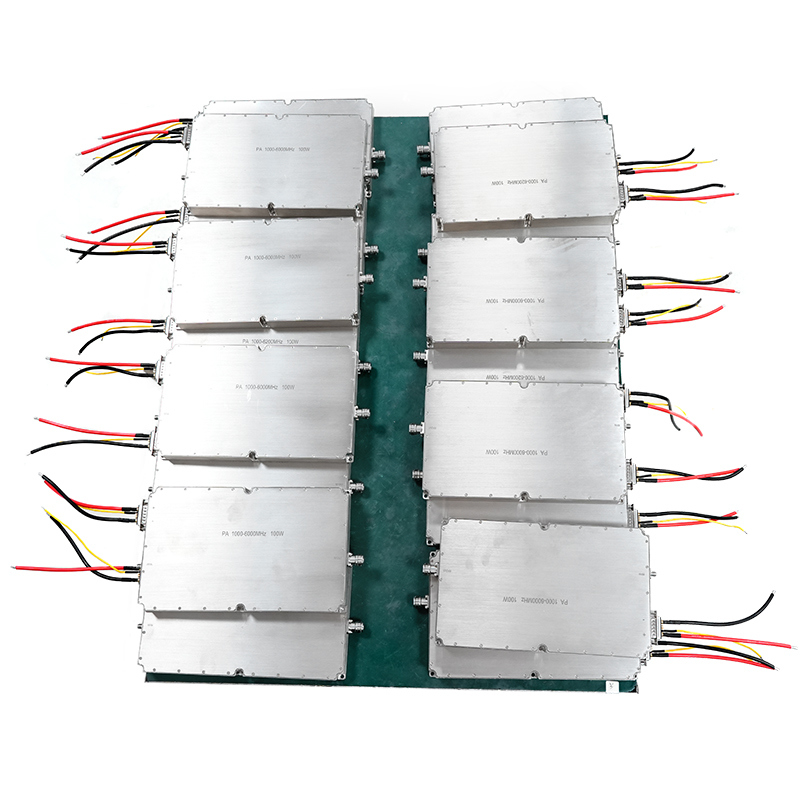

Professional Ultra band 2000-7200mhz 100W power amplifier module designed by Texin, it is ultra band range 2000-7200mhz in one module. Users can install it by themselves to interfere with drones in the range from a distance, and the band 2000-7200mhz 100W power amplifier module supports customization.
The wide band power amplifier jammer module can be applied in areas with high requirements for low-altitude safety, such as airports, military restricted areas, large-scale event venues, chemical parks, and nuclear power plants. For example, at airports, it can prevent drones from entering no-fly zones, ensuring the normal takeoff and landing of flights; at large event venues, it can prevent illegal drone filming, maintaining safety and order at events.
Description | Symbol | Min | Typ | Max | Unit | Remark |
---|---|---|---|---|---|---|
Operating Frequency | BW | 2000 | 7200 | MHz | ||
Input Power | Pin | 0 | dBm | |||
Output Power CW | Psat | 47 | 48 | 49.5 | dBm | Continuous Wave |
Power Gain | Gp | 48 | dBm | @ Pin=0 dBm | ||
Power Gain Flatness | △Gp | ±1.5 | dB | @ Pin=0 dBm | ||
Input Return Loss | S11 | -15 | dB | |||
Operating Voltage | Vdc | 28 | 28 | 36 | V | |
Current Consumption | A | 7 | 9 | A | @ Pout=50~85W | |

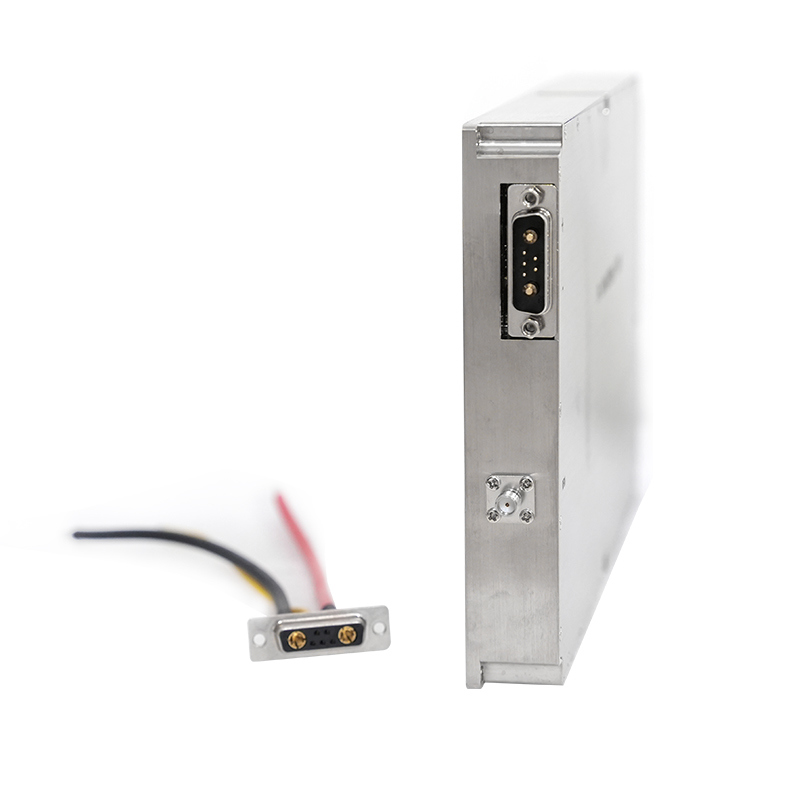

RF Connector Input | SMA, Female | |||||
RF Connector Output | SMA, Female | |||||
Max Input Power | PinMax | ≤10 dBm | ||||
Interface Definition | VDD | A1: 28Vdc | ||||
GND | A2: Ground | |||||
Enable | 1: 5V~Vdd:ON 0V:OFF |
